张量谜题

作者：Sasha Rush - srush_nlp (与Marcos Treviso合作)

在学习像PyTorch或Numpy这样的张量编程语言时，很容易依赖标准库（或者更诚实地说，依赖StackOverflow）来寻找各种神奇的函数。但实际上，张量语言非常强大，你可以通过基本原理和巧妙运用广播机制来完成大多数任务。

这是一个包含21个张量谜题的集合。就像国际象棋谜题一样，这些谜题并不是为了模拟真实程序的复杂性，而是为了在简化的环境中进行练习。每个谜题都要求你在不使用魔法的情况下重新实现NumPy标准库中的一个函数。

我建议在Colab中运行。点击这里并复制笔记本以开始。

如果你感兴趣，这里还有一个解答谜题的YouTube视频教程

!pip install -qqq torchtyping hypothesis pytest git+https://github.com/danoneata/chalk@srush-patch-1
!wget -q https://github.com/srush/Tensor-Puzzles/raw/main/lib.py

from lib import draw_examples, make_test, run_test
import torch
import numpy as np
from torchtyping import TensorType as TT
tensor = torch.tensor

规则

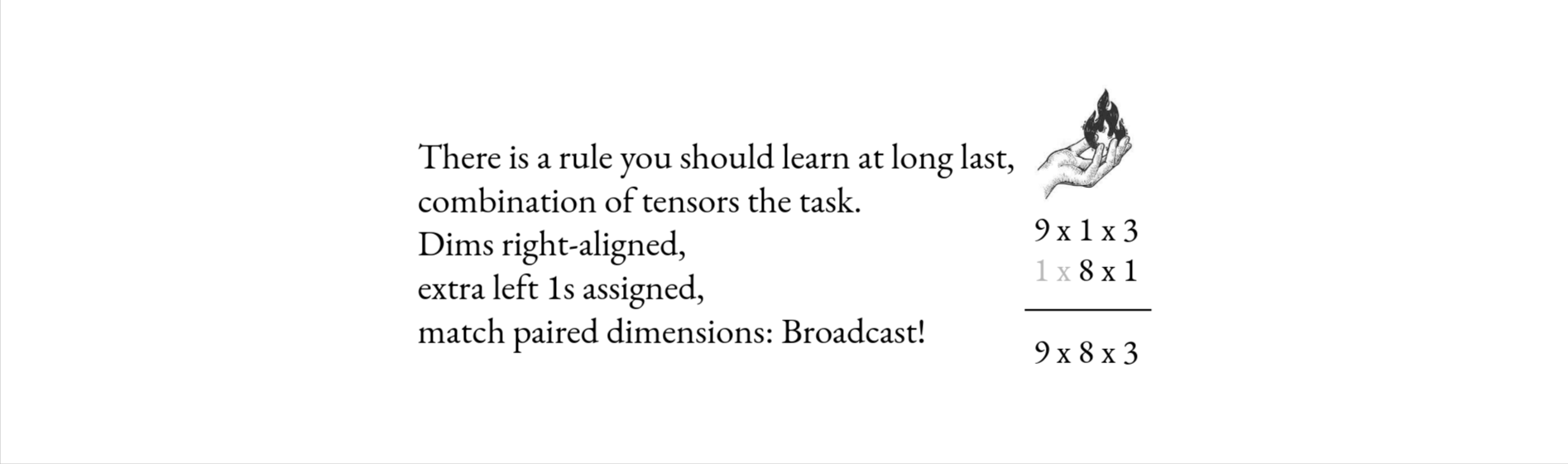

这些谜题主要关于广播。请记住这条规则。

每个谜题需要用1行代码（<80列）解决。
你可以使用@、算术运算、比较运算、shape、任何索引（如a[:j]、a[:, None]、a[arange(10)]）以及之前谜题中的函数。
你不能使用其他任何东西。不允许使用view、sum、take、squeeze、tensor。
你可以从这两个函数开始：

def arange(i: int):
    "使用此函数来替代for循环。"
    return torch.tensor(range(i))

draw_examples("arange", [{"" : arange(i)} for i in [5, 3, 9]])

# 广播示例
examples = [(arange(4), arange(5)[:, None]) ,
            (arange(3)[:, None], arange(2))]
draw_examples("broadcast", [{"a": a, "b":b, "ret": a + b} for a, b in examples])

def where(q, a, b):
    "使用此函数来替代if语句。"
    return (q * a) + (~q) * b

# 在图表中，橙色表示正/真，白色表示零/假，蓝色表示负。

examples = [(tensor([False]), tensor([10]), tensor([0])),
            (tensor([False, True]), tensor([1, 1]), tensor([-10, 0])),
            (tensor([False, True]), tensor([1]), tensor([-10, 0])),
            (tensor([[False, True], [True, False]]), tensor([1]), tensor([-10, 0])),
            (tensor([[False, True], [True, False]]), tensor([[0], [10]]), tensor([-10, 0])),
           ]
draw_examples("where", [{"q": q, "a":a, "b":b, "ret": where(q, a, b)} for q, a, b in examples])

谜题1 - ones

计算ones - 全为1的向量。

def ones_spec(out):
    for i in range(len(out)):
        out[i] = 1

def ones(i: int) -> TT["i"]:
    raise NotImplementedError

test_ones = make_test("one", ones, ones_spec, add_sizes=["i"])

# run_test(test_ones)

谜题2 - sum

计算sum - 向量的和。

def sum_spec(a, out):
    out[0] = 0
    for i in range(len(a)):
        out[0] += a[i]

def sum(a: TT["i"]) -> TT[1]:
    raise NotImplementedError


test_sum = make_test("sum", sum, sum_spec)

# run_test(test_sum)

谜题3 - outer

计算outer - 两个向量的外积。

def outer_spec(a, b, out):
    for i in range(len(out)):
        for j in range(len(out[0])):
            out[i][j] = a[i] * b[j]

def outer(a: TT["i"], b: TT["j"]) -> TT["i", "j"]:
    raise NotImplementedError

test_outer = make_test("outer", outer, outer_spec)

# run_test(test_outer)

谜题4 - diag

计算diag - 方阵的对角线向量。

def diag_spec(a, out):
    for i in range(len(a)):
        out[i] = a[i][i]

def diag(a: TT["i", "i"]) -> TT["i"]:
    raise NotImplementedError


test_diag = make_test("diag", diag, diag_spec)

# run_test(test_diag)

谜题5 - eye

计算eye - 单位矩阵。

def eye_spec(out):
    for i in range(len(out)):
        out[i][i] = 1

def eye(j: int) -> TT["j", "j"]:
    raise NotImplementedError

test_eye = make_test("eye", eye, eye_spec, add_sizes=["j"])

# run_test(test_eye)

谜题6 - triu

计算triu - 上三角矩阵。

def triu_spec(out):
    for i in range(len(out)):
        for j in range(len(out)):
            if i <= j:
                out[i][j] = 1
            else:
                out[i][j] = 0

def triu(j: int) -> TT["j", "j"]:
    raise NotImplementedError


test_triu = make_test("triu", triu, triu_spec, add_sizes=["j"])

svg

# run_test(test_triu)

谜题7 - cumsum

计算cumsum - 累积和。

def cumsum_spec(a, out):
    total = 0
    for i in range(len(out)):
        out[i] = total + a[i]
        total += a[i]

def cumsum(a: TT["i"]) -> TT["i"]:
    raise NotImplementedError

test_cumsum = make_test("cumsum", cumsum, cumsum_spec)

svg

# run_test(test_cumsum)

谜题8 - diff

计算diff - 运行差值。

def diff_spec(a, out):
    out[0] = a[0]
    for i in range(1, len(out)):
        out[i] = a[i] - a[i - 1]

def diff(a: TT["i"], i: int) -> TT["i"]:
    raise NotImplementedError

test_diff = make_test("diff", diff, diff_spec, add_sizes=["i"])

svg

# run_test(test_diff)

谜题9 - vstack

计算vstack - 两个向量的矩阵

def vstack_spec(a, b, out):
    for i in range(len(out[0])):
        out[0][i] = a[i]
        out[1][i] = b[i]

def vstack(a: TT["i"], b: TT["i"]) -> TT[2, "i"]:
    raise NotImplementedError


test_vstack = make_test("vstack", vstack, vstack_spec)

svg

# run_test(test_vstack)

谜题10 - roll

计算roll - 循环移动1个位置的向量。

def roll_spec(a, out):
    for i in range(len(out)):
        if i + 1 < len(out):
            out[i] = a[i + 1]
        else:
            out[i] = a[i + 1 - len(out)]

def roll(a: TT["i"], i: int) -> TT["i"]:
    raise NotImplementedError


test_roll = make_test("roll", roll, roll_spec, add_sizes=["i"])

svg

# run_test(test_roll)

谜题11 - flip

计算flip - 反转的向量

def flip_spec(a, out):
    for i in range(len(out)):
        out[i] = a[len(out) - i - 1]

def flip(a: TT["i"], i: int) -> TT["i"]:
    raise NotImplementedError


test_flip = make_test("flip", flip, flip_spec, add_sizes=["i"])

svg

# run_test(test_flip)

谜题12 - compress

计算compress - 只保留掩码条目（左对齐）。

def compress_spec(g, v, out):
    j = 0
    for i in range(len(g)):
        if g[i]:
            out[j] = v[i]
            j += 1

def compress(g: TT["i", bool], v: TT["i"], i:int) -> TT["i"]:
    raise NotImplementedError


test_compress = make_test("compress", compress, compress_spec, add_sizes=["i"])

svg

# run_test(test_compress)

谜题13 - pad_to

计算pad_to - 通过消除或添加0来改变向量的大小。

def pad_to_spec(a, out):
    for i in range(min(len(out), len(a))):
        out[i] = a[i]


def pad_to(a: TT["i"], i: int, j: int) -> TT["j"]:
    raise NotImplementedError


test_pad_to = make_test("pad_to", pad_to, pad_to_spec, add_sizes=["i", "j"])

svg

# run_test(test_pad_to)

谜题14 - sequence_mask

计算sequence_mask - 每批填充到指定长度。

def sequence_mask_spec(values, length, out):
    for i in range(len(out)):
        for j in range(len(out[0])):
            if j < length[i]:
                out[i][j] = values[i][j]
            else:
                out[i][j] = 0

def sequence_mask(values: TT["i", "j"], length: TT["i", int]) -> TT["i", "j"]:
    raise NotImplementedError


def constraint_set_length(d):
    d["length"] = d["length"] % d["values"].shape[1]
    return d


test_sequence = make_test("sequence_mask",
    sequence_mask, sequence_mask_spec, constraint=constraint_set_length
)

svg

# run_test(test_sequence)

谜题15 - bincount

计算bincount - 统计每个元素出现的次数。

def bincount_spec(a, out):
    for i in range(len(a)):
        out[a[i]] += 1

def bincount(a: TT["i"], j: int) -> TT["j"]:
    raise NotImplementedError


def constraint_set_max(d):
    d["a"] = d["a"] % d["return"].shape[0]
    return d


test_bincount = make_test("bincount",
    bincount, bincount_spec, add_sizes=["j"], constraint=constraint_set_max
)

svg

# run_test(test_bincount)

谜题16 - scatter_add

计算scatter_add - 将链接到同一位置的值相加。

def scatter_add_spec(values, link, out):
    for j in range(len(values)):
        out[link[j]] += values[j]

def scatter_add(values: TT["i"], link: TT["i"], j: int) -> TT["j"]:
    raise NotImplementedError


def constraint_set_max(d):
    d["link"] = d["link"] % d["return"].shape[0]
    return d


test_scatter_add = make_test("scatter_add",
    scatter_add, scatter_add_spec, add_sizes=["j"], constraint=constraint_set_max
)

svg

# run_test(test_scatter_add)

谜题17 - flatten

计算flatten

def flatten_spec(a, out):
    k = 0
    for i in range(len(a)):
        for j in range(len(a[0])):
            out[k] = a[i][j]
            k += 1

def flatten(a: TT["i", "j"], i:int, j:int) -> TT["i * j"]:
    raise NotImplementedError

test_flatten = make_test("flatten", flatten, flatten_spec, add_sizes=["i", "j"])

svg

# run_test(test_flatten)

谜题18 - linspace

计算linspace

def linspace_spec(i, j, out):
    for k in range(len(out)):
        out[k] = float(i + (j - i) * k / max(1, len(out) - 1))

def linspace(i: TT[1], j: TT[1], n: int) -> TT["n", float]:
    raise NotImplementedError

test_linspace = make_test("linspace", linspace, linspace_spec, add_sizes=["n"])

svg

# run_test(test_linspace)

谜题19 - heaviside

计算heaviside

def heaviside_spec(a, b, out):
    for k in range(len(out)):
        if a[k] == 0:
            out[k] = b[k]
        else:
            out[k] = int(a[k] > 0)

def heaviside(a: TT["i"], b: TT["i"]) -> TT["i"]:
    raise NotImplementedError

test_heaviside = make_test("heaviside", heaviside, heaviside_spec)

svg

# run_test(test_heaviside)

谜题20 - repeat (1d)

计算repeat

def repeat_spec(a, d, out):
    for i in range(d[0]):
        for k in range(len(a)):
            out[i][k] = a[k]

def constraint_set(d):
    d["d"][0] = d["return"].shape[0]
    return d


def repeat(a: TT["i"], d: TT[1]) -> TT["d", "i"]:
    raise NotImplementedError

test_repeat = make_test("repeat", repeat, repeat_spec, constraint=constraint_set)

svg

谜题21 - bucketize

计算bucketize

def bucketize_spec(v, boundaries, out):
    for i, val in enumerate(v):
        out[i] = 0
        for j in range(len(boundaries)-1):
            if val >= boundaries[j]:
                out[i] = j + 1
        if val >= boundaries[-1]:
            out[i] = len(boundaries)


def constraint_set(d):
    d["boundaries"] = np.abs(d["boundaries"]).cumsum()
    return d


def bucketize(v: TT["i"], boundaries: TT["j"]) -> TT["i"]:
    raise NotImplementedError

test_bucketize = make_test("bucketize", bucketize, bucketize_spec,
                           constraint=constraint_set)

svg

速度挑战模式!

你能将每个函数尽可能缩短到多少?

import inspect
fns = (ones, sum, outer, diag, eye, triu, cumsum, diff, vstack, roll, flip,
       compress, pad_to, sequence_mask, bincount, scatter_add)

for fn in fns:
    lines = [l for l in inspect.getsource(fn).split("\n") if not l.strip().startswith("#")]

    if len(lines) > 3:
        print(fn.__name__, len(lines[2]), "(超过1行)")
    else:
        print(fn.__name__, len(lines[1]))

ones 29
sum 29
outer 29
diag 29
eye 29
triu 29
cumsum 29
diff 29
vstack 29
roll 29
flip 29
compress 29
pad_to 29
sequence_mask 29
bincount 29
scatter_add 29
